QVDec™ MPEG-4 AVC / MPEG-2 IP Decoder

Click here for datasheet.
Click here for manual.
Click here for clips.
Click here for Quick Start Guide.

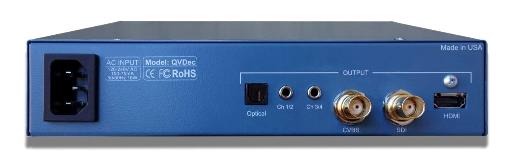

QVidium Decoder FrontQVidium Decoder Rear

Key Features


  • Supports SRT and RIST w/ Encription (Caller and Listener modes)
  • Receive Broadcast-quality SDI feeds from WEB Cams, YouTube, Facebook, and other CDNs
  • QVidium Patented feed-back based error correction (ARQ)
  • USB for playing back video files
  • 4 channel audio output on SDI or analog audio
  • Simultaneous SDI and Composite output
  • 7 VDC to 18VDC Power Input directly or through AC Power Adapter.
  • AC3 audio pass through on SDI and S/PDIF output
  • Powerful HD to SD down/up scaler and frame rate converter
  • DVBCSA Decryption
  • Full Closed Captioning Support: CEA-608, CEA-708, VANC & Line 21

Major Benefits


  • MPEG-4 AVC Video: MPEG-4 AVC 4:2:0 video decoding selectable up to 25 Mbps transport-stream bit rates
  • Incorporates QVidium's patented feed-back based error correction (ARQ): QVidium's ARQ provides the most reliable video transport over any IP network, including wireless and unconditioned IP networks.
  • MPEG-2 Video: MPEG-2 4:2:0 video decoding selectable up to 25 Mbps transport-stream bit rates
  • Simple interconnect: Gigabit Ethernet interface allows simple interconnection to most network equipment for management.
  • Easy to Manage:Easy to manage through web-based user management and SNMP Traps.

Ordering Info


  • Model# QVDEC (HD and SD decoding)

Application Example


Decoder Application
